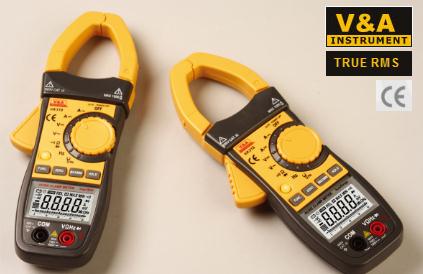

MASTECH V&A – VA318 Series, High Accuracy Digital AC/DC Clamp Meter (True RMS)
MASTECH V&A – VA318 Series, High Accuracy Digital AC/DC Clamp Meter (True RMS)
VA318 is a Digital AC/DC Clamp Meter base on microcontroller with 3999 count LCD display. This meter is True RMS measurement. The features are diode test, continuity buzzer, data hold, relative measurement, auto power off, low power indicator, auto range, DC current measuring by clamp, Back Light, 42 segments Bar graph.
Specification & Measurement
- DC Voltage : 4V – 1000V
- DC Current : 400A/1000A
- AC Voltage : 4V – 700V (True RMS)
- AC Current : 400A/1000A (True RMS)
- Resistance : 400Ω – 40MΩ
- Frequency : 40Hz – 100kHz
- Frequency From Clamp : 40Hz/400Hz
- Back Light
- 42 segments Bar graph
- Max Jaw Opening : 42mm
- LCD Size : 44x23mm
- Accessories : Test lead, Bag, Manual, Battery
