ENDA – EDP141 Series Digital Potentiometer

ENDA – EDP141 Series Digital Potentiometer

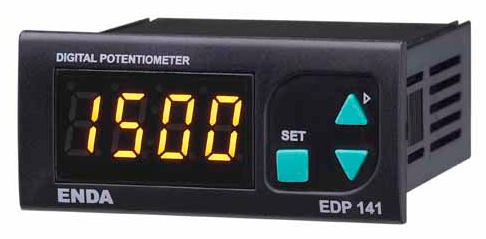

ENDA Digital Potentiometer EDP141 is programmable digital potentiometer based on a microcontroller with 0…10V analogue output. The values are viewed on 4 digits display. Selecting the “soft on” and “soft off” and parameter access protection on 3 levels is made easy via the front panel keypad.

Specification

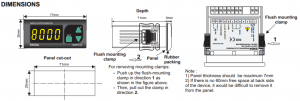

• 35x77mm sized.
• 4 digits display .
• Easy to use by front panel keypad.
• Communication via RS-485 Modbus protocol or
• Synchronous running between two or more potentiometers. (Optional)
• Preset value can be adjusted from external buttons.
• Display scale can be adjusted between -1999 and 8000.
• Decimal point can be adjusted between 1. and 3. digits.
• 0-10V output with adjustable minimum and maximum values.
• ‘Soft on’ and ‘soft off’ properties can be selected.
• Parameter access protection on 3 levels.
• CE marked according to European Norms.
