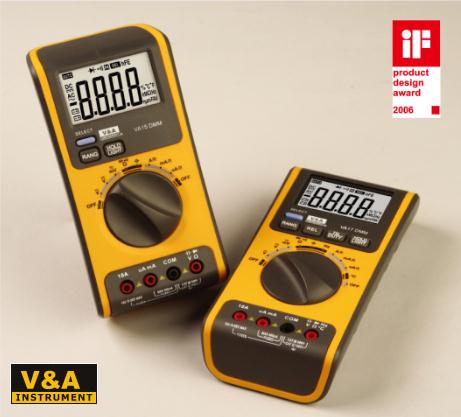

MASTECH V&A – VA17 Series, 4000 Count Digital Multi Meter

MASTECH V&A – VA17 Series, 4000 Count Digital Multi Meter
VA17 is a digital multi meter base on microcontroller with 4000 count LCD display. The features are Diode test, Buzzer, Continuity, Temperature test, Frequency, Duty Cycle, Relative measurement, Data hold, Auto power off, Auto / manual ranging, Electronic protection system, Standard with IEC1010 CATII 1000V.

Specification & Measurement

• DC Voltage : 0.1mV – 1000V
• DC Current : 0.1µA – 10A
• AC Voltage : 0.1mV – 1000V, Frequency Response : 40Hz – 500Hz
• AC Current : 0.1µA – 10A, Frequency Response : 40Hz – 200Hz
• Resistance : 0.1Ω– 40MΩ
• Capacitance : 0.01nF – 100µF
• Frequency / Duty Cycle : 10Hz – 100Hz
• Temperature : -55°C – 1000°C
